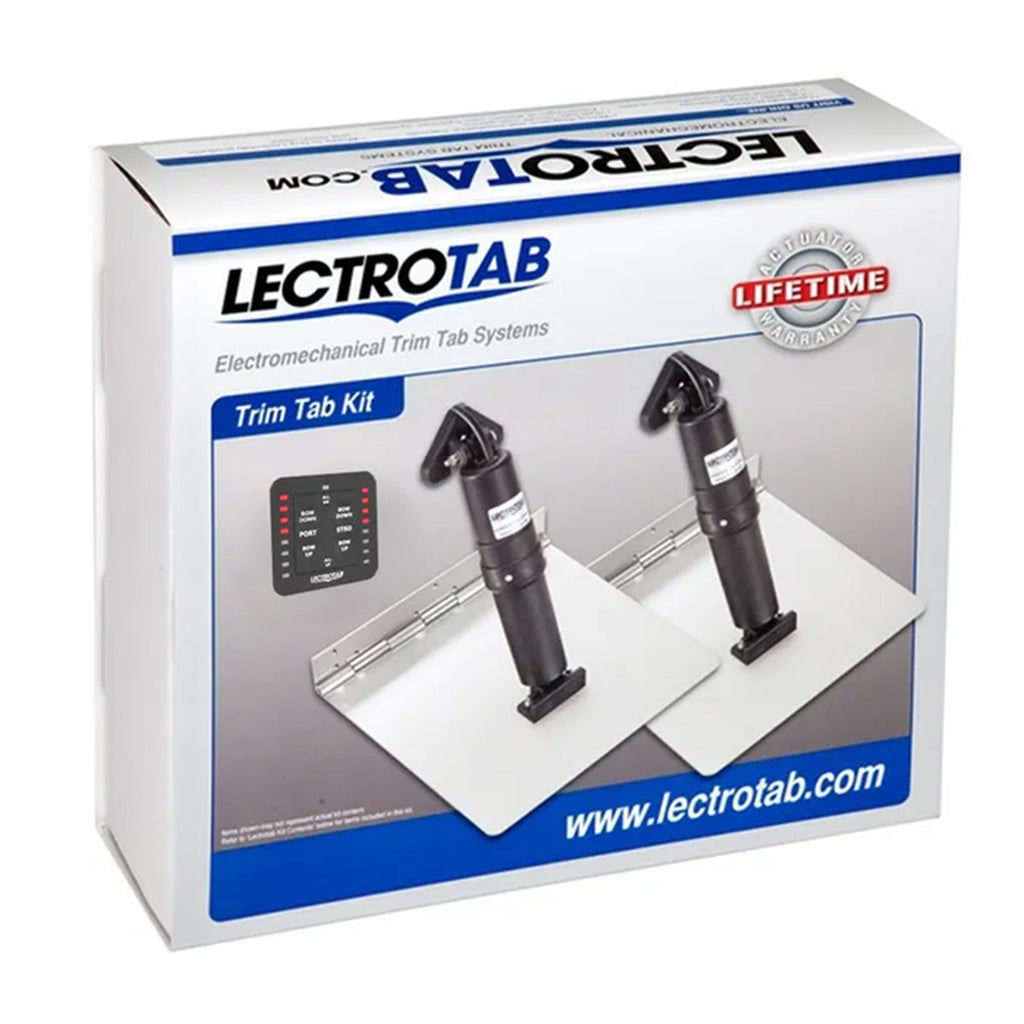

The Lectrotab 12V 12" x 12" Electric Trim Tab Package is a complete electromechanical trim tab system for boats requiring reliable, easy-to-use electric trim control. The package includes two 12" x 12" stainless steel trim tab plates, two 12V electric actuators and an LED control switch with automatic tab retraction.
Lectrotab trim tabs help adjust your boat's running attitude by controlling bow rise, improving stability and allowing you to compensate for uneven loads, changing sea conditions and different operating speeds. The included LED auto-retract controller provides convenient helm control and automatically retracts the tabs when the ignition or accessory switch is turned off.
Lectrotab 12V 12" x 12" Trim Tab Package Features
- Complete 12V electric trim tab package
- 12" x 12" stainless steel trim tab plates
- Two 12V electric actuators
- LED trim tab control switch
- Automatic trim tab retraction
- LED tab position indicators
- 304 stainless steel construction
- 12-gauge stainless steel tab plates
- Continuous rolled and pinned hinge design
- Strong non-welded hinge construction
- Quiet electromechanical actuator operation
- Non-hydraulic and maintenance-free actuator design
- 23ft / 7m actuator cables
- Made in the USA
12" x 12" Electric Trim Tabs
The 12" x 12" trim tab plates provide a substantial control surface for adjusting your boat's running attitude. Trim tabs can help reduce bow rise during acceleration, improve the boat's attitude at cruising speed and compensate for uneven passenger or gear loads.
They also allow you to make adjustments as wind and sea conditions change, helping your boat run more efficiently and comfortably.
304 Stainless Steel Trim Tab Plates
The Lectrotab trim tab plates are manufactured from corrosion-resistant 12-gauge 304 stainless steel. The continuous rolled and pinned hinge provides additional strength while eliminating the need for a welded hinge.
The non-upturned tab design provides a clean, robust installation suitable for a wide range of recreational and fishing boats.
Electric Trim Tab Actuators
This package includes two 12V Lectrotab electric actuators, each supplied with a 23ft (7m) cable. The precision-engineered actuators provide quiet operation without the pumps, hydraulic lines or fluid associated with hydraulic trim tab systems.
The electromechanical design provides a simple and low-maintenance alternative to hydraulic trim tab systems.

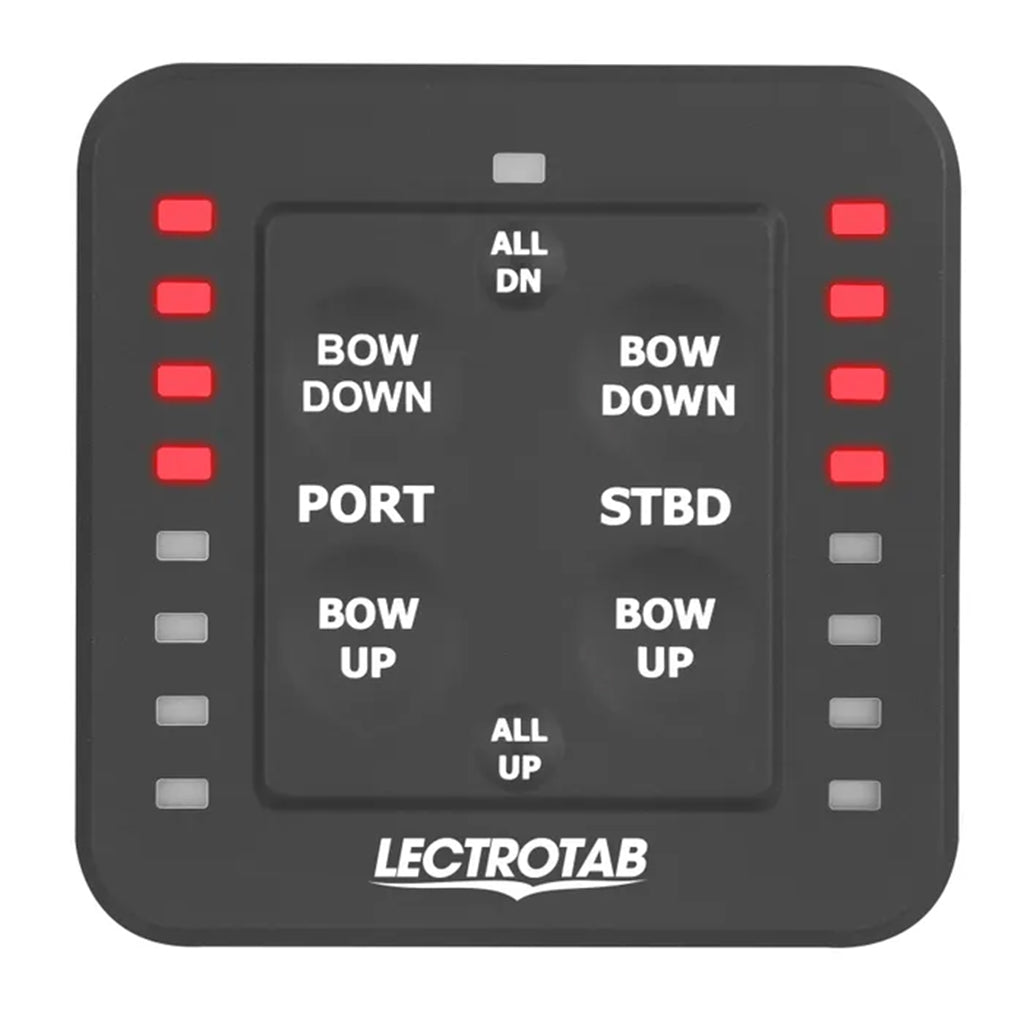

LED Controller with Auto Retract
The included LED trim tab controller provides convenient control from the helm and displays the approximate position of the trim tabs.
The automatic retract function raises the trim tabs when the connected ignition or accessory switch is turned off. The controller can also be configured to return the tabs to their previous position when the system is switched back on.
The LED position indicators automatically adjust their brightness, becoming brighter in daylight and dimming in darker conditions.
Easy One-Touch Trim Tab Control
The Lectrotab controller allows the tabs to be raised or lowered using simple one-touch controls. Both tabs can be moved together, while the position indicators provide a visual reference of tab deployment.
This makes it easy to adjust the boat's attitude while accelerating, cruising, fishing or operating in changing sea conditions.
Benefits of Electric Trim Tabs
Electric trim tabs provide an easy way to fine-tune your boat's running attitude. Correctly adjusted trim tabs can help:
- Reduce bow rise when accelerating
- Improve the boat's running attitude
- Correct uneven side-to-side loading
- Improve stability in changing conditions
- Help the boat reach an efficient cruising attitude
- Improve comfort for passengers
- Provide additional control when operating at different speeds
Lectrotab 12V Trim Tab Package Specifications
- Brand: Lectrotab
- System type: Electromechanical trim tab system
- Operating voltage: 12V DC
- Trim tab size: 12" x 12"
- Trim tab material: 304 stainless steel
- Plate thickness: 12 gauge
- Trim tab style: Non-upturned
- Actuators: 2 x 12V standard actuators
- Actuator cable length: 23ft / 7m each
- Controller: LED switch with automatic retract
- Hinge: Continuous rolled and pinned hinge
- Actuator type: Electromechanical
- Maintenance: Non-hydraulic, maintenance-free actuator design
- Country of manufacture: USA
What's Included?
- 2 x 12" x 12" stainless steel trim tab plates
- 2 x 12V standard electric actuators
- 2 x 23ft / 7m actuator cables
- 1 x LED trim tab switch with auto retract
- Carriage bolts and nuts for actuator-to-tab mounting
Lectrotab Trim Tabs for NZ Boats
The Lectrotab 12V 12" x 12" trim tab package is a practical choice for New Zealand boat owners looking for a complete electric trim tab system. The combination of robust stainless steel tabs, quiet electric actuators and LED auto-retract control provides a straightforward alternative to hydraulic trim tab systems.
Trim tabs are particularly useful on fishing and recreational boats where changing passenger loads, fishing gear, fuel levels and sea conditions can affect the boat's running attitude.
Buy Lectrotab 12V Trim Tabs NZ
Shop the Lectrotab 12V 12" x 12" electric trim tab package with LED auto retract at Lure Me. A complete Lectrotab trim tab system supplied with stainless steel tabs, 12V actuators and LED automatic-retract control.
Looking for a different size? Browse our trim tab systems for more Lectrotab trim tab packages and marine trim control options.
