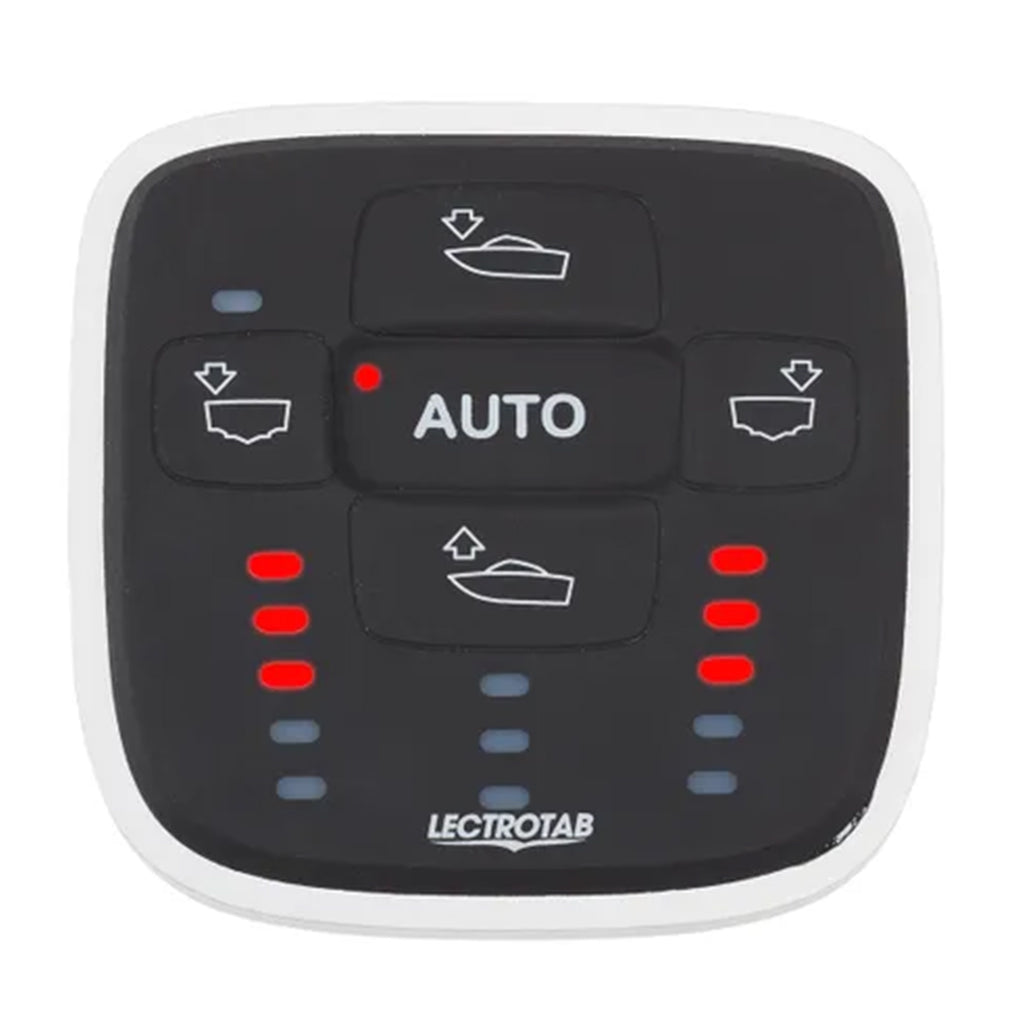

Lectrotab Controller with Auto Roll and Pitch

The Lectrotab Automatic Leveling Control (ALC) is an advanced automatic trim tab controller that continuously adjusts your boat's trim tabs to correct both roll from side to side and pitch from bow to stern. As wind, sea conditions, boat speed or passenger loads change, the ALC automatically adjusts the trim tabs to help maintain a more level and comfortable ride.

Designed for planing and semi-displacement hulls larger than 20 feet, the Lectrotab ALC features an integrated GPS, automatic leveling, LED tab position indicators and automatic trim tab retraction. The system operates on 10–30V DC and does not require a separate GPS antenna or network connection.

Lectrotab Automatic Leveling Control Features

• Automatic roll and pitch correction
• Microprocessor-based automatic leveling trim tab control
• Internal GPS – no GPS antenna or network required
• Automatically adapts to varying sea conditions
• LED trim tab position indicators
• Prevents automatic corrections while turning
• Automatic trim tab retraction
• Completely sealed and waterproof to IP68
• UV protected for long-term marine use
• LED indicators automatically dim in darkness and brighten in sunlight
• Designed for planing and semi-displacement hulls larger than 20ft
• Actuators connect directly to the ALC-1 display panel
• No external power module required for standard ALC-1 installations
• Dual-station operation available with compatible ALC configurations
• 10–30V DC operation
• 2-year warranty
• CE approved

Automatic Boat Leveling

The Lectrotab Automatic Leveling Control automatically adjusts your trim tabs as conditions change. Wind, waves, changing speed and passengers moving around the boat can all affect the boat's running attitude.

Instead of constantly adjusting the trim tabs manually, the ALC monitors the boat and makes automatic corrections to help maintain a more level attitude and a comfortable ride.

Automatic Roll & Pitch Correction

The Lectrotab ALC automatically corrects both roll and pitch. Roll correction helps compensate when the boat leans from side to side, while pitch correction helps maintain the desired fore-and-aft running attitude.

The adaptive system responds to changing sea conditions and helps maintain the boat's optimum running attitude as conditions change.

Built-In GPS – No External Antenna Required

The Lectrotab ALC includes an internal GPS, eliminating the need for a separate GPS antenna or marine electronics network connection for the automatic leveling function.

This simplifies installation while allowing the system to monitor boat movement and automatically adjust the trim tabs as required.

Automatic Trim Tab Adjustment

The ALC continuously monitors the boat's attitude and automatically adjusts the connected trim tabs. The system is designed to prevent automatic corrections while the boat is turning, helping maintain predictable handling.

When the boat slows below planing speed, the ALC stops attempting to control the boat's attitude. Automatic leveling resumes as the boat accelerates back onto the plane.

Automatic Trim Tab Retract

The Lectrotab Automatic Leveling Control also provides automatic trim tab retraction. The tabs can automatically retract when the boat is stopped, and an optional ignition-key connection can also be used to initiate automatic retraction.

This helps ensure the trim tabs are returned to the retracted position when the boat is no longer underway.

LED Trim Tab Position Indicators

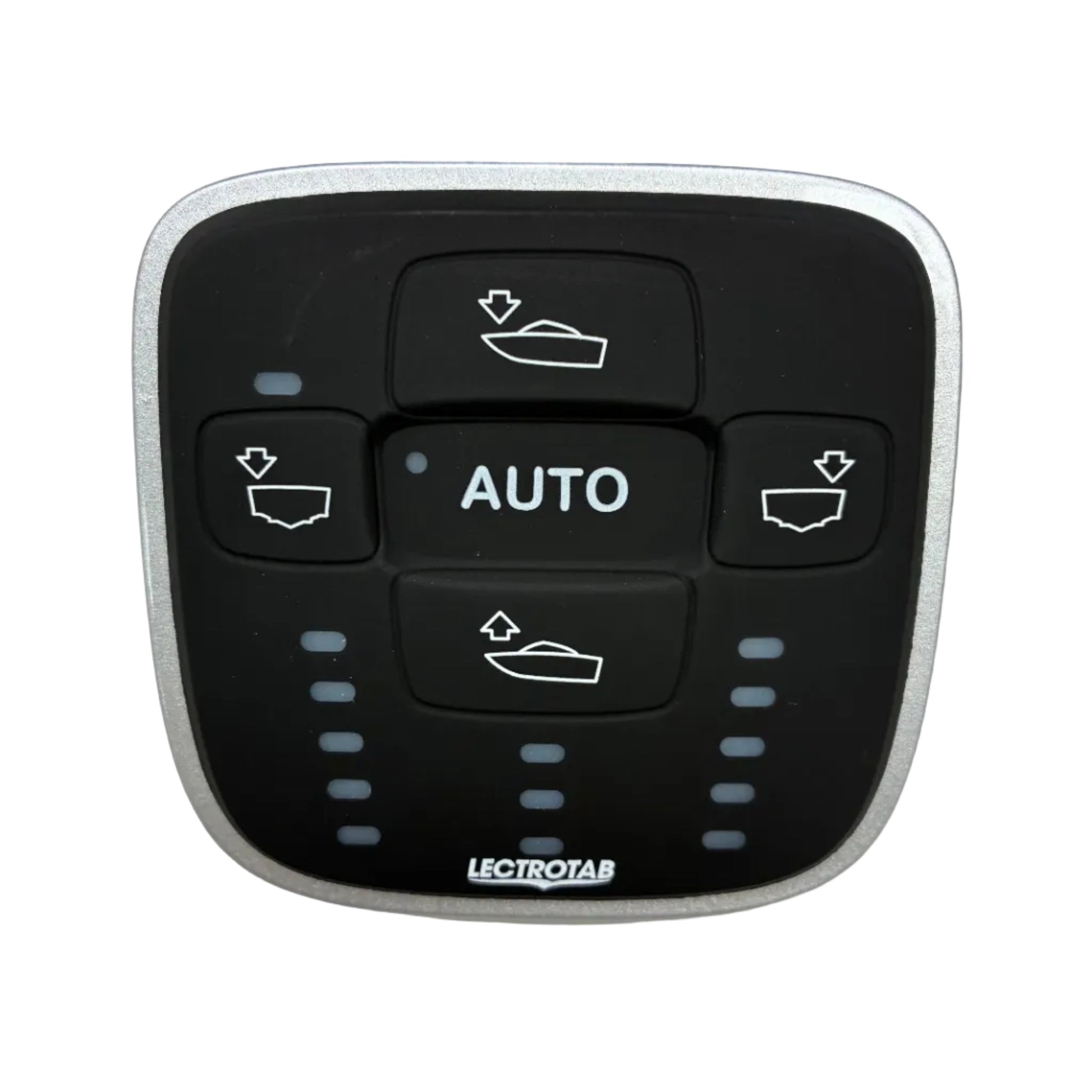

The ALC display panel features LED trim tab position indicators, allowing you to see the position of the trim tabs from the helm.

The LED indicators automatically adjust their brightness according to ambient light, dimming in darkness and becoming brighter in sunlight for easier viewing.

Automatic & Manual Trim Tab Control

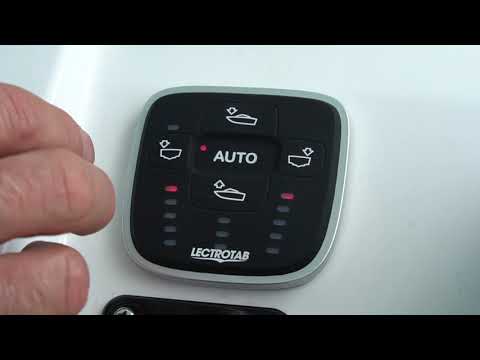

The Lectrotab ALC provides both automatic and manual operation. Press AUTO to enter automatic leveling mode, or switch to manual mode when you want to adjust the trim tabs yourself.

This gives you the convenience of automatic boat leveling while still allowing direct manual control when required.

Designed for Planing & Semi-Displacement Boats

The Lectrotab ALC is designed for planing and semi-displacement hulls larger than 20 feet. It is particularly suited to boat owners looking for automatic trim tab control without needing to constantly operate conventional trim tab switches.

The system automatically starts correcting the boat's attitude during acceleration and adapts to varying sea conditions once the boat is operating at planing speed.

Simple Actuator Connection

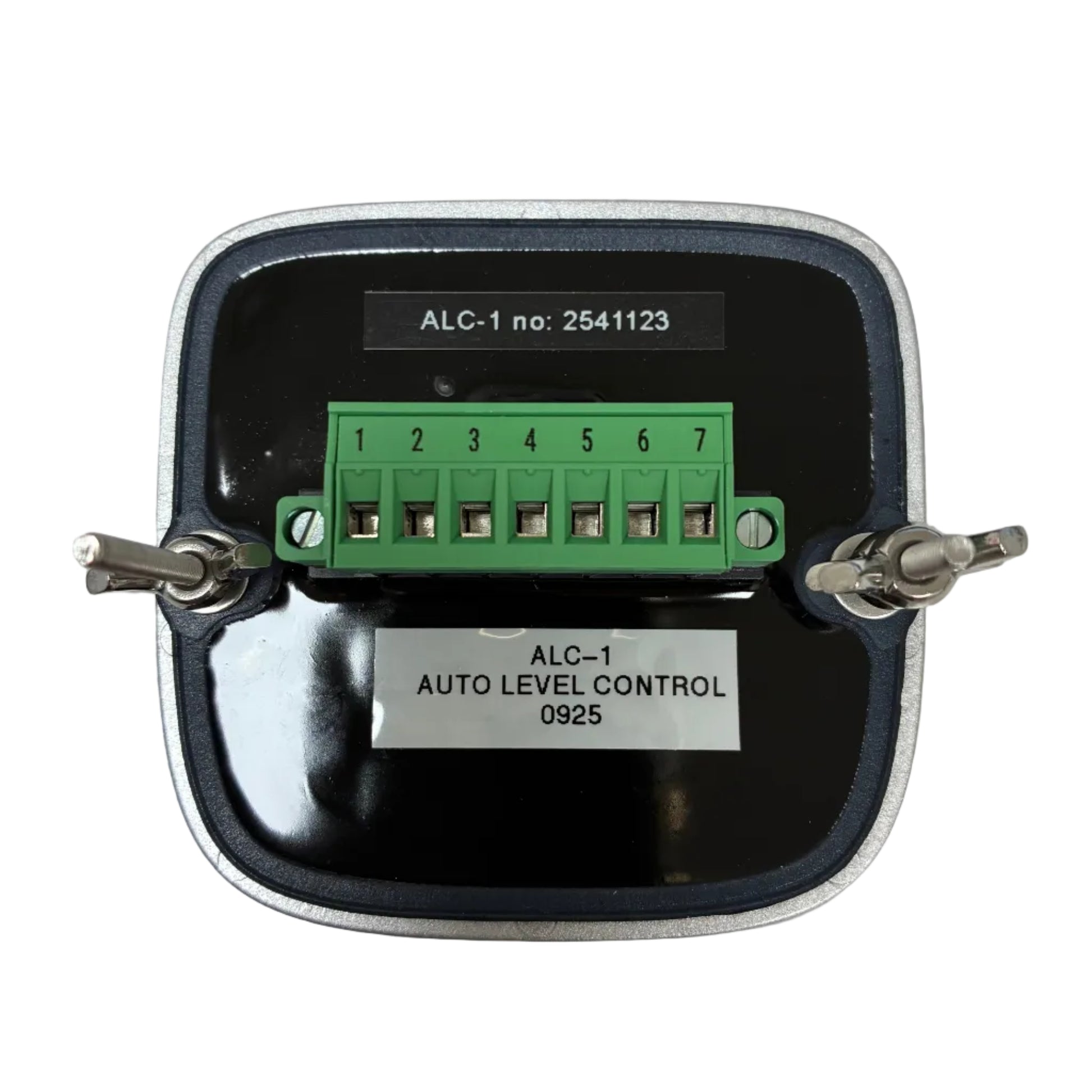

With the standard ALC-1 configuration, compatible trim tab actuators connect directly to the ALC display panel, eliminating the need for a separate external power module box.

Dual-station configurations are also available. ALC-1D and ALC-2D configurations require the appropriate external power module for dual-station operation.

Lectrotab ALC Specifications

• System: Automatic Leveling Control (ALC)
• Automatic control: Roll and pitch
• GPS: Internal GPS
• Operating voltage: 10–30V DC
• Display colour: Black
• Display width: 80mm / 3.15"

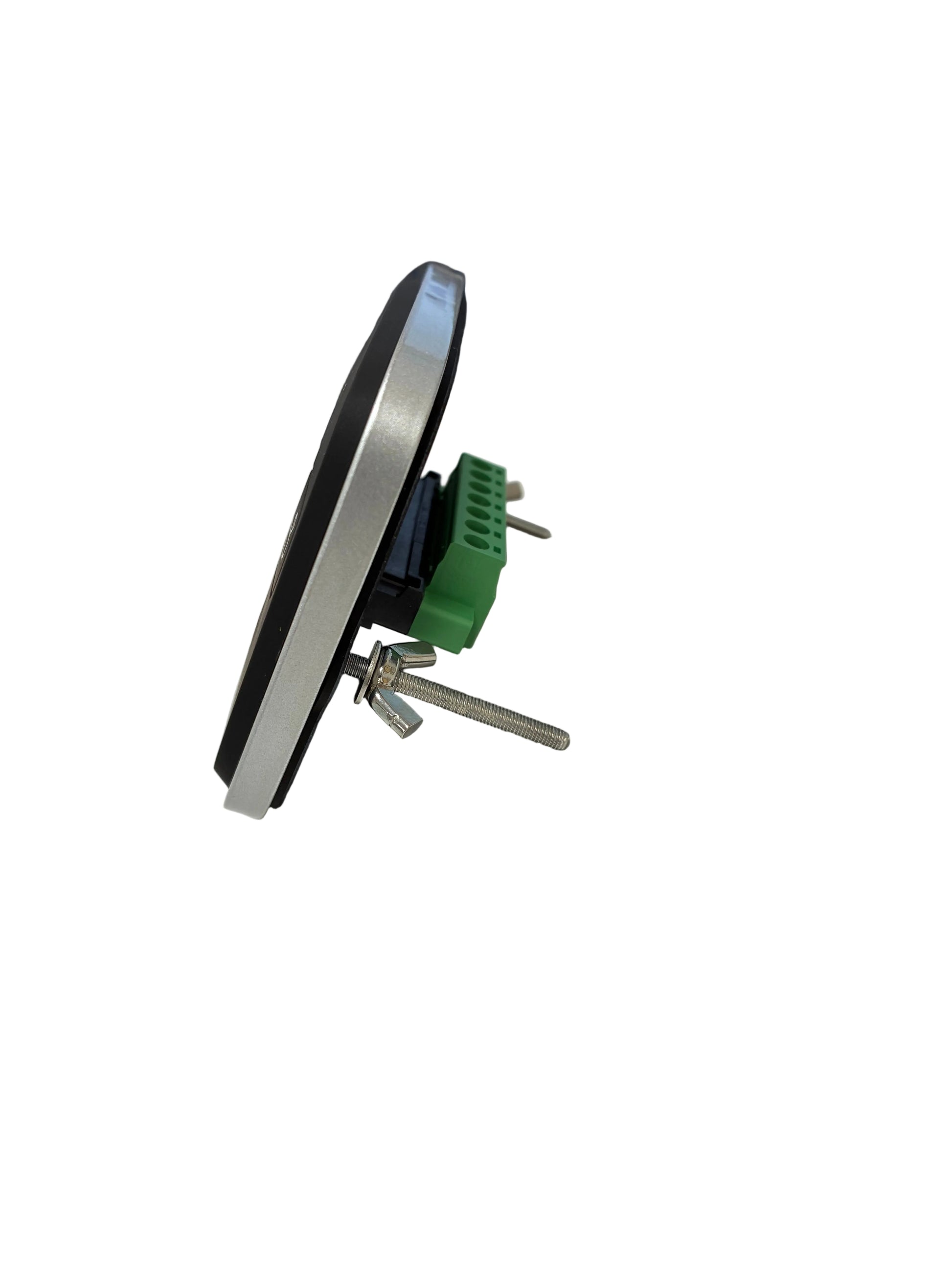

• Display height/thickness: 77mm / 3.0" / 11mm / 0.437"
• Mounting hole: 50mm / 2"
• Waterproof rating: IP68
• Hull type: Planing and semi-displacement
• Recommended boat size: Over 20ft
• Automatic retract: Yes
• Manual mode: Yes
• Dual-station operation: Available with compatible configurations
• Warranty: 2 years
• Certification: CE approved

Lectrotab ALC Model Configurations

The Automatic Leveling Control system is available in several configurations to suit different actuator and station requirements.

• ALC-1: One station with one actuator per tab
• ALC-1D: One or two stations with one actuator per tab
• ALC-2D: One or two stations with two actuators per tab

Check your existing Lectrotab trim tab actuators and installation requirements before selecting the appropriate configuration.

Lectrotab Automatic Leveling Control Information

For additional technical information, specifications, wiring and programming details, download the Lectrotab Automatic Leveling Control Information Flyer.

Download Lectrotab Information Flyer (PDF)

Lectrotab Automatic Leveling Control for NZ Boats

The Lectrotab Automatic Leveling Control is an excellent upgrade for New Zealand boat owners who want automatic trim tab adjustment and improved boat attitude without constantly operating the trim tab controls manually.

By automatically correcting roll and pitch as conditions change, the ALC can help maintain a more level boat and a more comfortable ride. The system is designed for planing and semi-displacement boats over 20 feet and provides automatic and manual trim tab control in one compact helm-mounted controller.
