Lectrotab 12V 9" x 12" Electric Trim Tab Package with Rocker Switch
Lectrotab 12V 9" x 12" Electric Trim Tab Package with Rocker Switch
Ships Direct from NZ Supply Partner
Couldn't load pickup availability

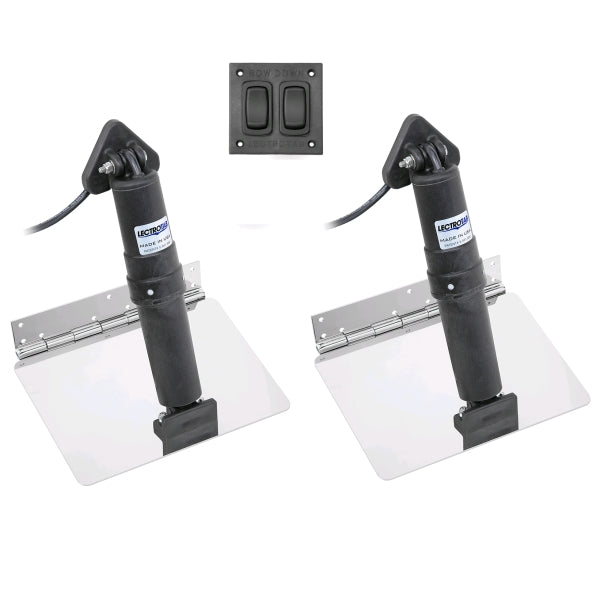

The Lectrotab 12V 9" x 12" Electric Trim Tab Package with Rocker Switch is a complete electromechanical trim tab system for boats requiring reliable and straightforward trim control. The package includes two 9" x 12" stainless steel trim tab plates, two 12V electric actuators and a rocker switch for manual trim tab adjustment.
Lectrotab trim tabs allow you to adjust your boat's running attitude by controlling bow rise, correcting uneven loading and improving stability as speed, passenger loads and sea conditions change. This package provides a simple and cost-effective alternative to more advanced automatic trim tab control systems.
Lectrotab 12V 9" x 12" Trim Tab Package Features
- Complete 12V electric trim tab package
- 9" x 12" stainless steel trim tab plates
- Two 12V electric actuators
- Manual rocker switch control
- Corrosion-resistant 304 stainless steel construction
- 12-gauge stainless steel tab plates
- Continuous rolled and pinned hinge design
- Strong non-welded hinge construction
- Quiet electromechanical actuator operation
- Non-hydraulic, maintenance-free actuator design
- 23ft / 7m actuator cables
- Non-upturned trim tab plates
- Made in the USA
9" x 12" Electric Trim Tabs
The 9" x 12" Lectrotab trim tab plates provide effective control over your boat's running attitude while offering a compact installation footprint. Trim tabs can help reduce bow rise during acceleration, improve the boat's attitude at cruising speed and compensate for uneven passenger or equipment loads.
They also allow you to manually adjust the boat's attitude as wind, waves, speed and loading conditions change.
304 Stainless Steel Trim Tab Plates
The Lectrotab trim tab plates are manufactured from corrosion-resistant 12-gauge 304 stainless steel. Each tab uses a continuous rolled and pinned hinge that provides added strength while eliminating the need for a welded hinge.
The non-upturned design provides a clean and robust installation for a wide range of recreational and fishing boats.
12V Electric Trim Tab Actuators
This package includes two 12V Lectrotab electric actuators, each supplied with a 23ft (7m) cable. The precision-engineered actuators combine quiet operation with a non-hydraulic, maintenance-free design.
The electromechanical system provides a straightforward alternative to hydraulic trim tabs without the need for hydraulic pumps, fluid or hydraulic lines.
Rocker Switch Trim Tab Control
The included rocker switch provides simple manual control of the Lectrotab trim tabs from the helm. The switch allows you to raise or lower the trim tabs as required to adjust the boat's running attitude.
A manual rocker switch is a straightforward option for boat owners who prefer direct trim tab control without the additional features of an automatic leveling or LED auto-retract controller.
Benefits of Electric Trim Tabs
Electric trim tabs provide an effective way to fine-tune your boat's running attitude. Correctly adjusted trim tabs can help:
- Reduce bow rise during acceleration
- Improve the boat's running attitude
- Correct uneven side-to-side loading
- Improve stability in changing conditions
- Help the boat achieve an efficient cruising attitude
- Improve passenger comfort
- Provide additional control at different speeds
Lectrotab 12V 9" x 12" Trim Tab Specifications
- Brand: Lectrotab
- System type: Electromechanical trim tab system
- Operating voltage: 12V DC
- Trim tab size: 9" x 12"
- Trim tab material: 304 stainless steel
- Plate thickness: 12 gauge
- Trim tab style: Non-upturned
- Actuators: 2 x 12V standard actuators
- Actuator cable length: 23ft / 7m each
- Controller: Rocker switch
- Hinge: Continuous rolled and pinned hinge
- Actuator type: Electromechanical
- Maintenance: Non-hydraulic, maintenance-free actuator design
- Country of manufacture: USA

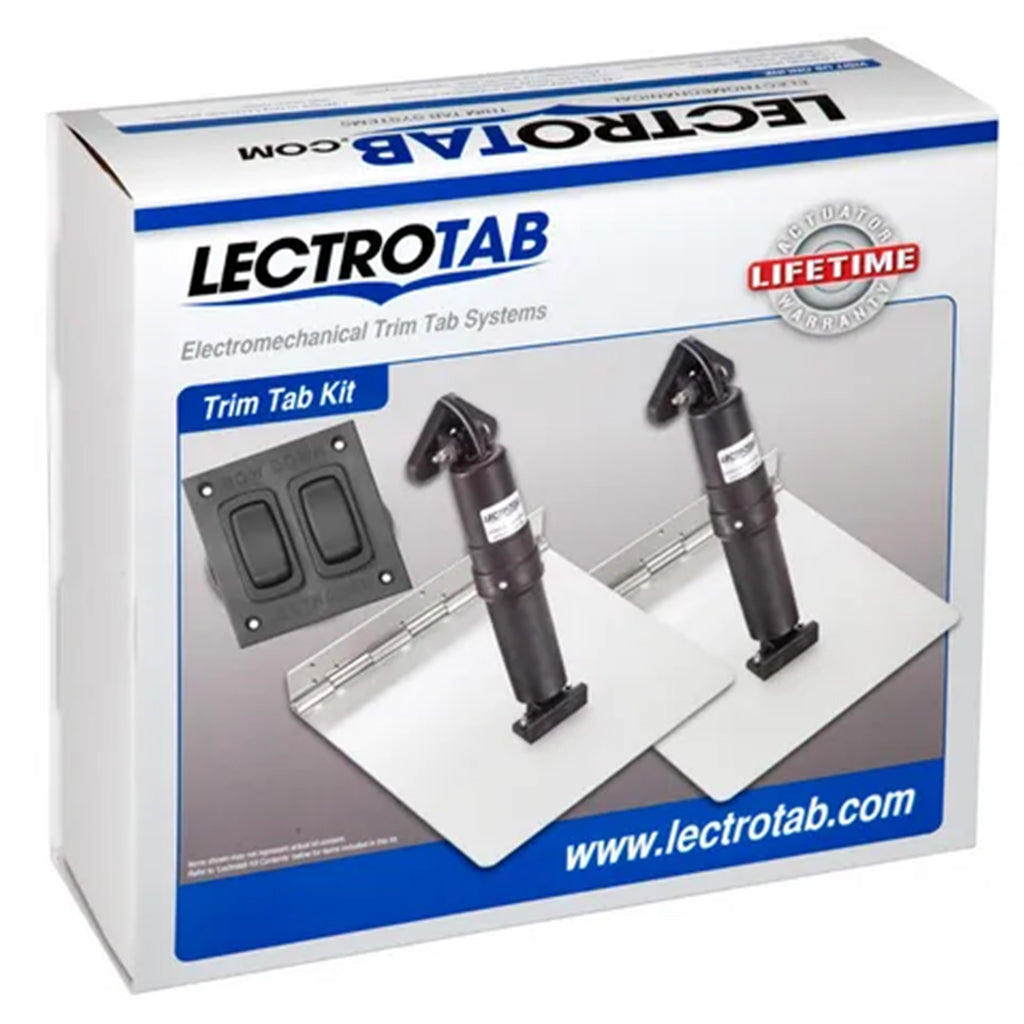

What's Included?
- 2 x 9" x 12" stainless steel trim tab plates
- 2 x 12V standard electric actuators
- 2 x 23ft / 7m actuator cables
- 1 x rocker switch
- Carriage bolts and nuts for actuator mounting to the tabs
Lectrotab 9" x 12" Trim Tabs for NZ Boats
The Lectrotab 12V 9" x 12" trim tab package with rocker switch is a practical choice for New Zealand boat owners looking for a reliable and uncomplicated electric trim tab system.
The combination of stainless steel trim tabs, quiet electromechanical actuators and manual rocker switch control makes this package well suited to fishing and recreational boats where straightforward trim adjustment is preferred.
Rocker Switch vs LED Auto Retract
This package uses a manual rocker switch rather than the LED controller with automatic retract supplied with some Lectrotab packages. If you want LED tab position indication and automatic trim tab retraction, consider the Lectrotab 12V 9" x 12" Trim Tab Package with LED Auto Retract.
The rocker-switch package provides a simpler option for boat owners who want manual control and a lower-cost installation.
Buy Lectrotab 9" x 12" Trim Tabs NZ
Shop the Lectrotab 12V 9" x 12" electric trim tab package with rocker switch at Lure Me. A complete Lectrotab trim tab system supplied with stainless steel tabs, 12V electric actuators and manual rocker switch control.
Looking for more Lectrotab options? Browse our trim tab systems for electric trim tabs, LED auto-retract packages and automatic leveling controls.
