Simrad NSS12 EVO3S 12" Multi-Function Display

The Simrad NSS12 EVO3S 12" Multi-Function Display is a premium marine electronics display designed for serious boat owners, offshore anglers and sportfishing boats. With a large 12-inch SolarMAX IPS display, fast iMX 8 processing, built-in GPS, 1kW CHIRP sonar capability and extensive networking, the NSS12 EVO3S provides a powerful central hub for navigation, fish finding and onboard systems.

The NSS12 EVO3S combines an easy-to-use touchscreen with full keypad and rotary control, giving you precise operation in both calm and rough conditions. It can integrate with compatible Simrad sonar, radar, autopilot, engines and other marine electronics to create a complete boat electronics system.

Simrad NSS12 EVO3S Key Features

• 12-inch SolarMAX IPS display
• 1280 x 800 display resolution
• 1200-nit screen brightness
• Ultra-wide viewing angles
• Multi-touch touchscreen operation
• Full keypad and rotary control
• iMX 8 high-performance processor
• Built-in high-performance echosounder with 1kW CHIRP
• Built-in 10Hz GPS/GNSS receiver
• Wireless connectivity
• Ethernet networking
• NMEA 2000 connectivity
• Dual MicroSD card slots
• Radar, autopilot and engine integration
• TripIntel trip planning and automatic routing support
• Flush or bracket mounting
• Compatible with Simrad and selected third-party marine electronics

12-Inch Simrad Marine Display

The Simrad NSS12 EVO3S provides a large 12-inch display for viewing navigation charts, sonar, radar and other connected marine systems. The high-resolution SolarMAX IPS screen offers excellent clarity and wide viewing angles, while the 1200-nit brightness helps maintain visibility in bright conditions.

The larger 12-inch screen is particularly useful for boats where you want more information visible at once, including split-screen chart, sonar and navigation views.

Fast iMX 8 Processing

The NSS12 EVO3S uses a next-generation iMX 8 processor to deliver fast screen transitions, smoother chart rendering and responsive operation. This makes switching between navigation, sonar and other onboard functions quick and intuitive.

The EVO3S is an evolution of the NSS evo3 platform, with the upgraded processor improving the overall speed and smoothness of the system.

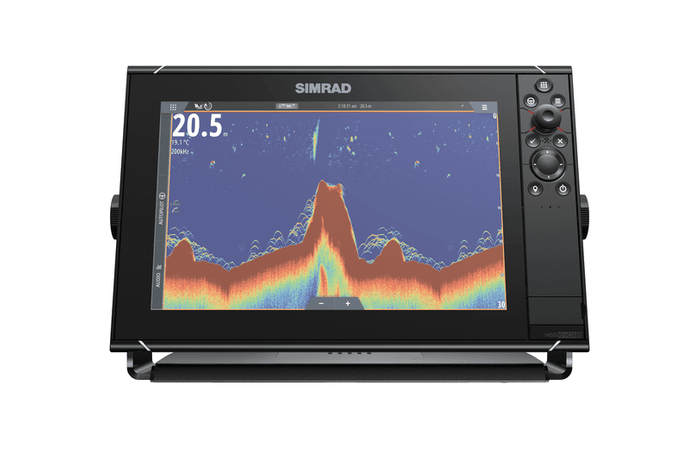

Built-In 1kW CHIRP Sonar

The NSS12 EVO3S includes a built-in high-performance echosounder with 1kW CHIRP capability. It can also be connected to compatible Simrad sonar modules and transducers to expand the system with additional fish-finding technologies.

Compatible sonar technologies include CHIRP, SideScan, DownScan Imaging, ForwardScan and StructureScan 3D, depending on the connected transducer or sonar module.

Important: This product is the display unit only. A transducer is not included, allowing you to select the sonar hardware that best suits your boat and fishing requirements.

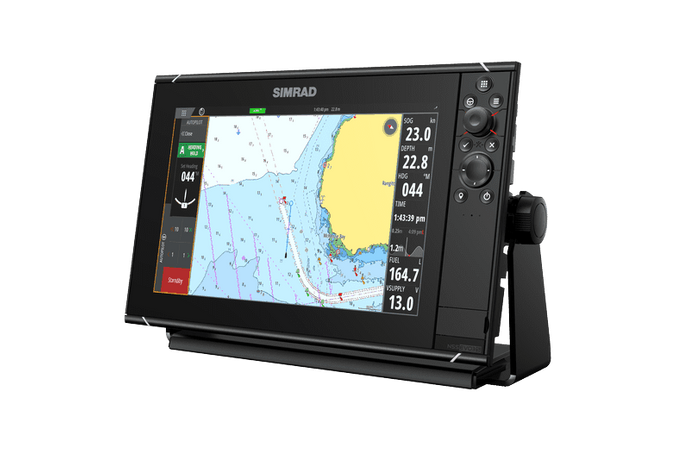

GPS & Marine Chartplotter

The built-in 10Hz GPS/GNSS receiver provides accurate position information for navigation, waypoint management and route planning. TripIntel provides trip planning and support for automatic routing when used with compatible charting.

Marine charts are not included with this product, allowing you to choose compatible charting from supported providers to suit your boating and fishing area.

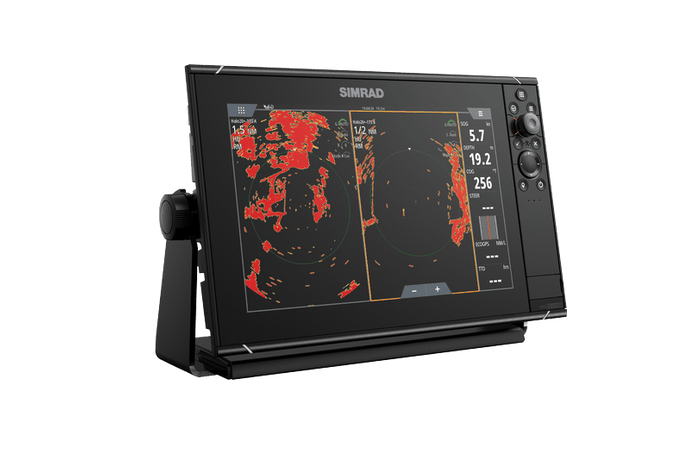

Radar, Autopilot & Engine Integration

The Simrad NSS12 EVO3S is designed to operate as the central hub of a connected marine electronics system. Compatible Simrad radar, autopilot, sonar and engine systems can be integrated through the display.

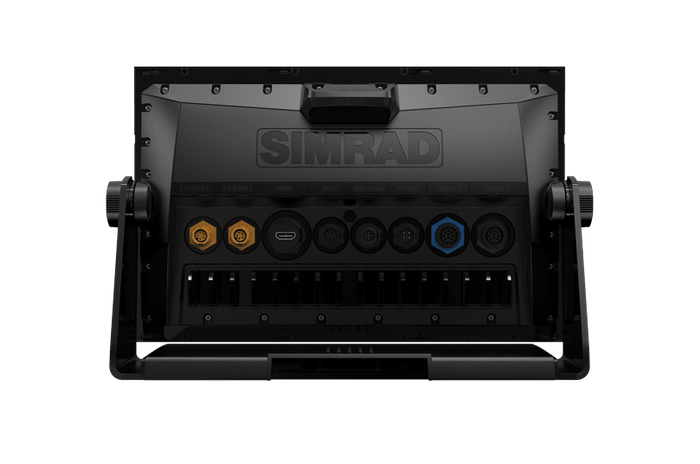

Ethernet and NMEA 2000 connectivity make the NSS12 EVO3S suitable for advanced boat electronics installations, while compatible third-party systems can further expand the functionality of your boat.

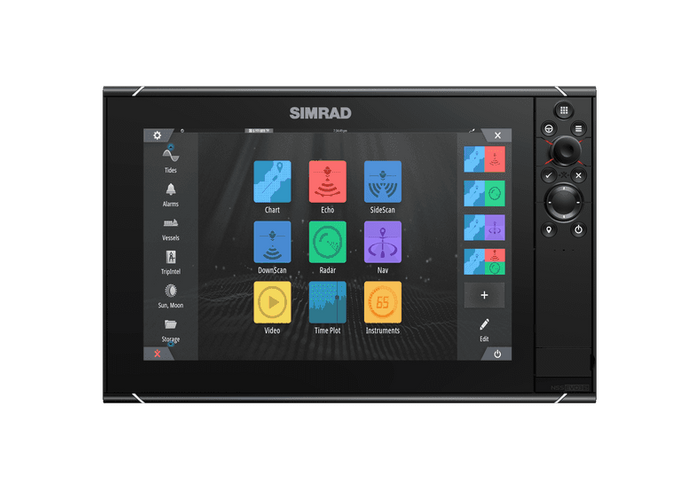

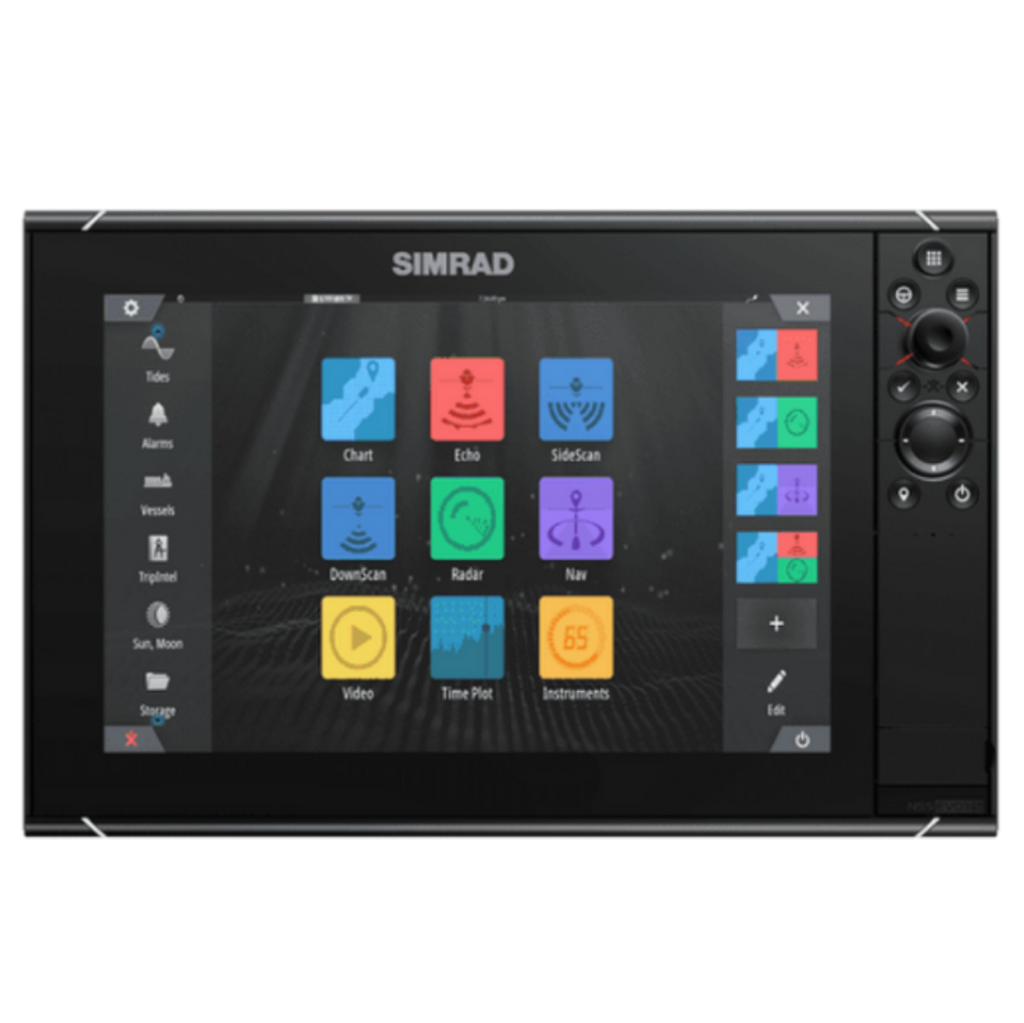

Touchscreen & Keypad Control

The NSS12 EVO3S gives you the choice of touchscreen or physical keypad and rotary control. Touch operation provides quick access to menus and functions, while the keypad offers precise control when the boat is moving or conditions are rough.

Simrad NSS12 EVO3S Specifications

• Display: 12-inch SolarMAX IPS
• Resolution: 1280 x 800
• Brightness: 1200 nits
• Viewing angle: 80° top/bottom and left/right
• GPS: Built-in 10Hz GNSS receiver
• Sonar: Built-in 1kW CHIRP echosounder
• Waypoints: 6,000
• Routes: 500
• Tracks: 50
• MicroSD: 2 slots
• Internal storage: 16GB
• NMEA 2000: 1 Micro-C port
• Waterproof rating: IPX6/IPX7
• Mounting: Bracket or flush mount

What's Included?

The Simrad NSS12 EVO3S is supplied as a multi-function display unit. No transducer or marine charts are included with this product. This gives you the flexibility to select compatible sonar and charting options for your particular boat and fishing requirements.

Simrad NSS12 EVO3S for NZ Boats

The NSS12 EVO3S is an excellent choice for New Zealand boat owners looking for a large-format marine GPS, chartplotter and fish-finding display. Its 12-inch screen, powerful processing and extensive networking make it particularly well suited to larger boats, offshore fishing and advanced marine electronics installations.

Buy the Simrad NSS12 EVO3S in NZ

Shop the Simrad NSS12 EVO3S 12-inch multi-function display at Lure Me. A premium marine electronics platform for GPS navigation, CHIRP sonar, chartplotting and integration with compatible Simrad radar, autopilot, engines and other onboard systems.

For more marine electronics, browse our fish finders and marine electronics.
